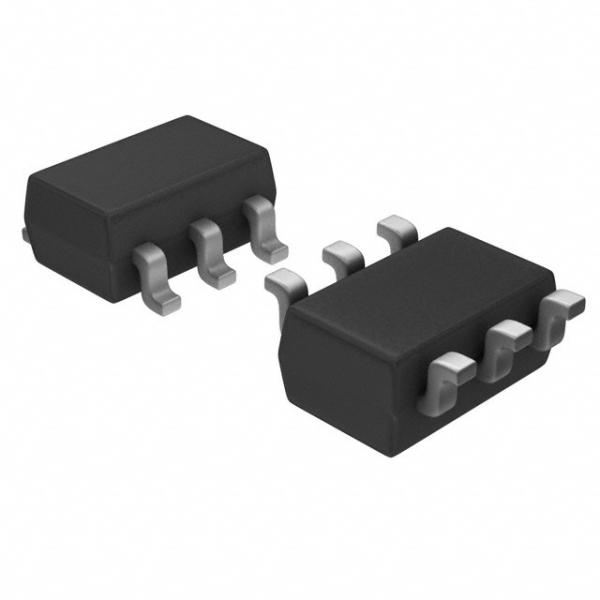

SN65220DBVR Clock Timer ICS ESD Suppressors / TVS Diodes Single USB Port

1 Features

• Design to Protect Submicron 3-V or 5-V Circuits from Noise Transients

• Port ESD Protection Capability Exceeds:

  • – 15-kV Human Body Model

  • – 2-kV Machine Model

• Available in a WCSP Chip-Scale Package

• Stand-Off Voltage: 6 V (Min)

• Low Current Leakage: 1-μA Max at 6 V

• Low Capacitance: 35-pF (Typ)




2 Description

The SN65220 device is a dual, and the SN65240 and SN75240 devices are quadruple, unidirectional transient voltage suppressors (TVS). These devices provide electrical noise transient protection to Universal Serial Bus (USB) low and full-speed ports. The input capacitance of 35 pF makes it unsuitable for high-speed USB 2.0 applications.

Any cabled I/O can be subjected to electrical noise transients from various sources. These noise transients can cause damage to the USB transceiver and/or the USB ASIC if they are of sufficient magnitude and duration.

The ESD performance of the SN65220, SN65240, and SN75240 devices is measured at the system level, according to IEC61000-4-2. However, system design impacts the results of these tests. To accomplish a high compliance level requires careful board design and layout techniques.
